HYPE-CHO™ Transfection Kit
HYPE-CHO™ Transfection Kit
HYPE-CHO™ Transfection Kit

HYPE-CHO™ Transfection Kit

Regular price
$199.00
Regular price
Sale price
$199.00
Unit price
per
Availability
Sold out

HYPE-CHO™ Transfection Kit has been designed for large scale up transient transfection and high protein expression such as antibody. The system is optimized for maximum efficiency in all CHO-S cells.

It has been used and validated with cells from different origins (CHO, CHO-S, rCHO or any CHO-related cells) cultured in suspension (flask, spinner and bioreactor) used to produce proteins.

  • Reach optimal Protein & Antibody production yield
  • Suitable for all CHO cells growing in suspension
  • Compatible with any synthetic or regular media used for protein production
  • Ideal for bioreactor, spinner or flasks
  • Animal origin free


Sizes:

  • Kit 1.5 mL (HYC01500): Suitable for 0.5-1 L of cell culture
  • Kit 3 mL (HYC03000): Suitable for 1-2 L of cell culture
  • Kit 15 mL (HYC15000): Suitable for 5-10 L of cell culture
  • Kit 30 mL (HYC30000): Suitable for 10-20 L of cell culture

Storage: Hype-CHO Reagent +4°C - BCHO +4°C
Shipping Conditions: Room temperature



Application

HYPE-CHO transfection Kit for Bioproduction:

  • Dedicated to Protein Production with CHO cells in suspension
  • Suitable for large scale transient transfection: Ideal for bioreactor, spinner or flasks
  • If you work with any 293 related cells, please refer to HYPE-293 transfection kit

RECOMMENDED FOR: Bioproduction and biopharmaceutical manufacturing



Results

High production yield for antibody

The results presented indicate that HYPE-CHO™ Transfection Kit (HYPE-CHO + BCHO) achieves high antibody production level and largely outperforms other commercially available transfection reagents in CHO-S cells growing in suspension with chemically defined medium. After 6 days in culture large amount of antibody can be produced under standard bioproduction process (30mL scale).

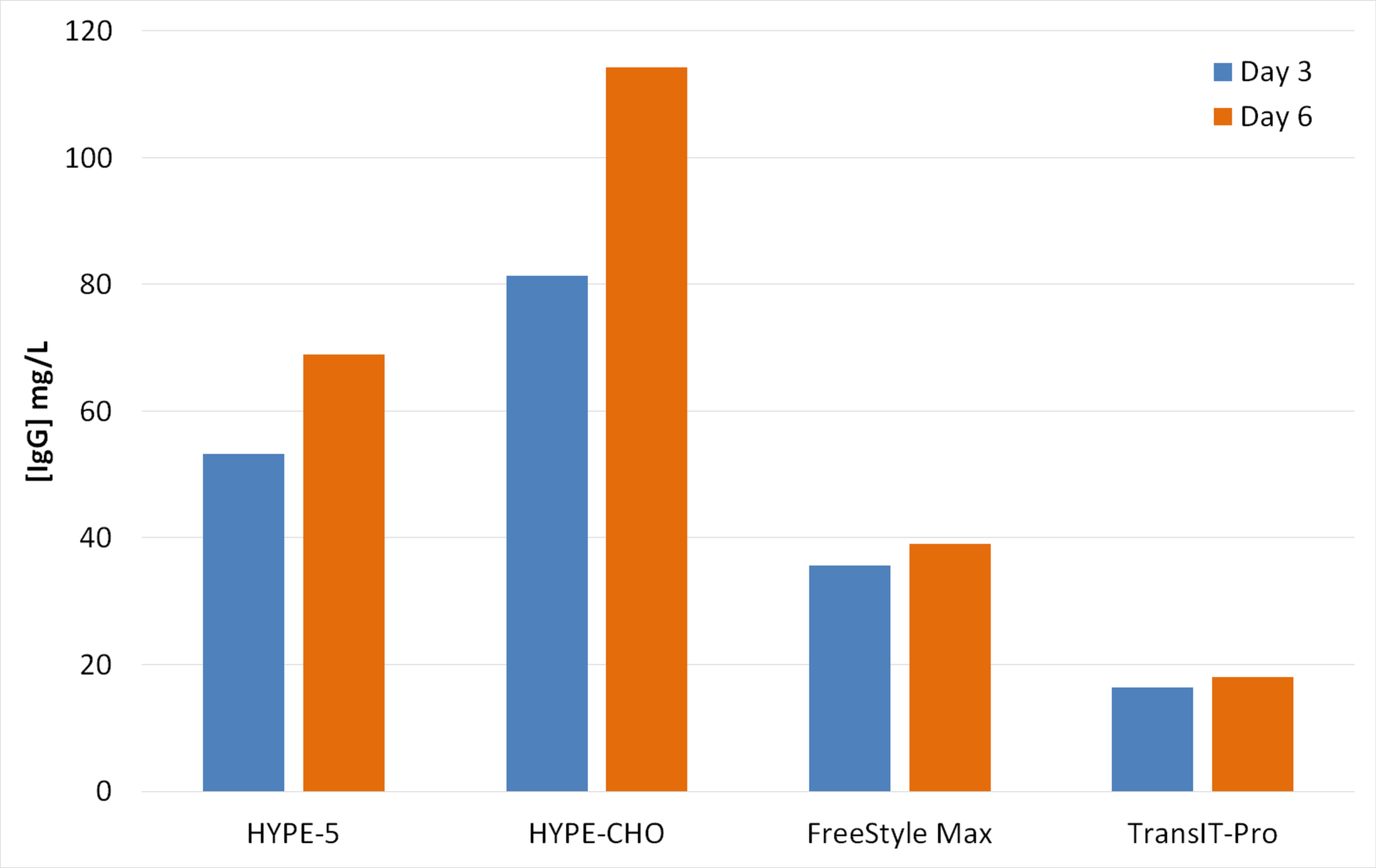

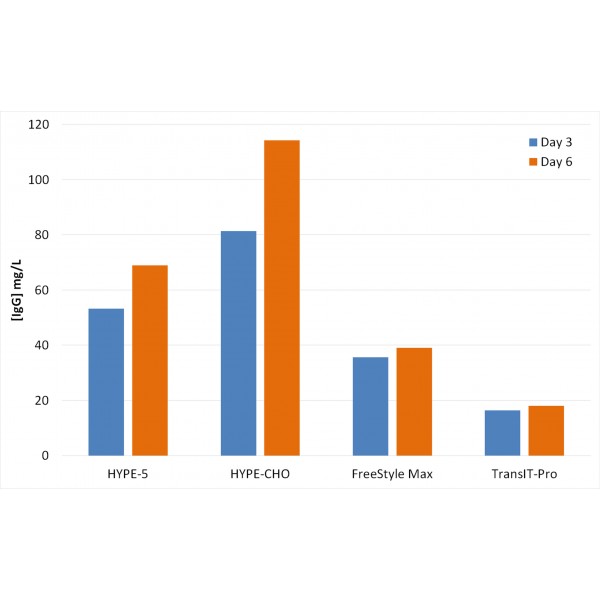

Fig.1: IgG Rabbit production after transient transfection of CHO-S cells with HYPE-CHO kit in 30 mL cell culture volume. Transfections were performed using 1.5 µg of plasmid DNA (antibody-expressing positive control vector, ThermoFisher) per mL of cell culture. 2 µL of HYPE-CHO reagent per µg of plasmid was used. CHO-S cells were cultured in 30 mL of medium in 125 mL shaken flasks. BCHO (1X final) was added to the cells 4h after the addition of the complexes (10µL per mL). Density of cell culture was 1x106 cells/mL the day of transfection. Day 3 and day 6 post-transfection, 500µL of supernatant was collected and IgG was measured with Easy-Titer Rabbit IgG Assay Kit (ThermoFisher).



Outperforms Competitors

The results presented below indicate that HYPE-CHO™ Transfection Kit achieves the highest protein yield in comparison to other commercially available transfection reagents in CHO-S cells growing in suspension with chemically defined medium.

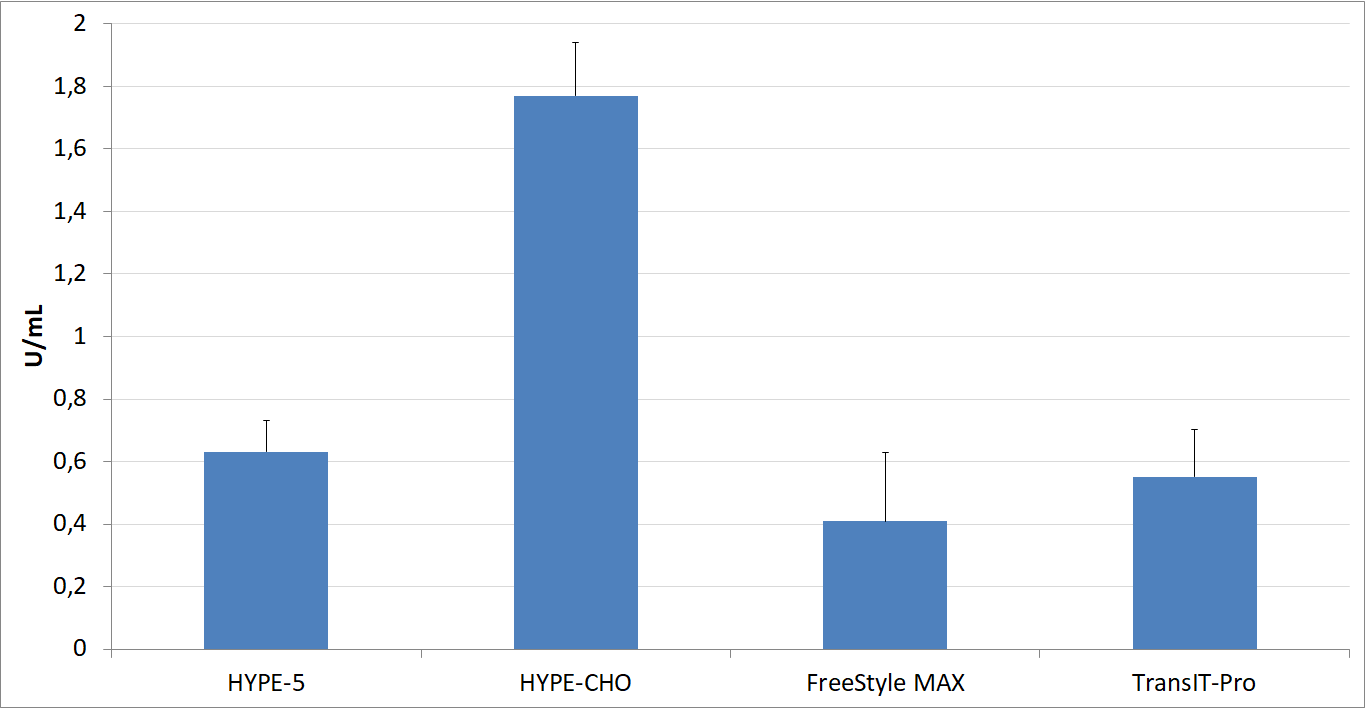

Fig.2:

SEAP Expression with HYPE-CHO Kit vs. other reagents. Secreted Alkaline Phosphatase (SEAP) was produced by transient transfection using HYPE-CHO Kit, FreeStyle Max or TransIT-Pro reagents according to manufacturer’s instructions. Transfections were performed using 1.5 µg of plasmid DNA (pVectOZ-SEAP) per mL of cell culture and 2µL of HYPE-CHO reagent per µg of plasmid. CHO-S cells were cultured in 30 mL of medium in 125 mL shaken flasks. Density of cell culture was 1x106 cells/mL the day of transfection. Day 5 post-transfection, 500µL of supernatant was collected and SEAP activity was measured using SEAP assay Kit (#SP00500).



Easy and efficient scale-up

The results indicate that protein production in CHO-S suspension cells can be easily scaled up by using HYPE-CHO™ Transfection Kit. It has been used in volume up to 300 mL of cell culture without any protocol modification and protein yield production is even higher when compared to lower cell culture volume.

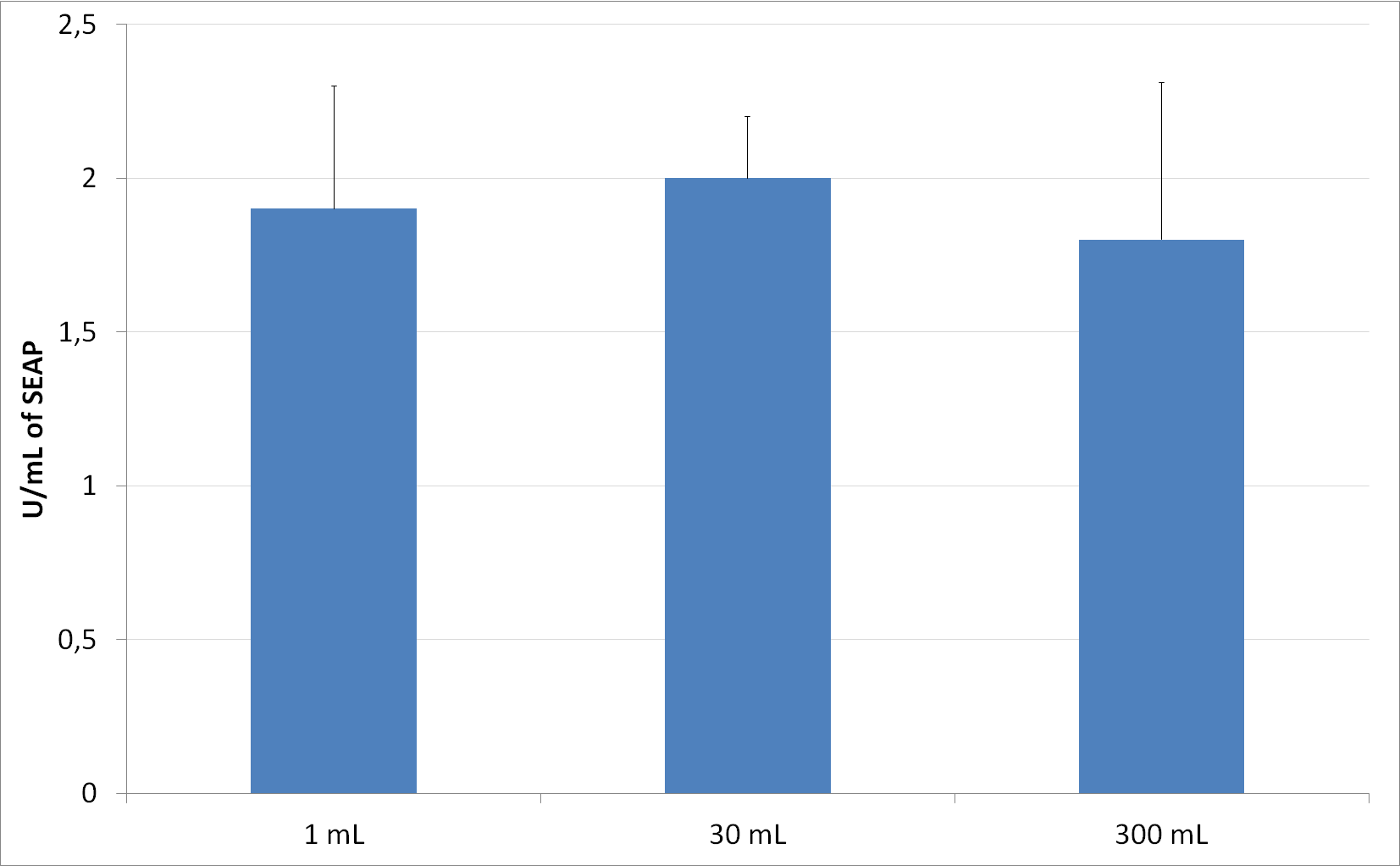

Fig.3: SEAP Expression with HYPE-CHO Kit in increasing volume of culture. Transfections were performed using 1.5 µg of plasmid DNA per mL of cell culture. Ratio of 2 µL of HYPE-CHO reagent per µg of plasmid was used and BCHO (1X final) was added 4h after transfection. Density of cell culture was 5x105 cells/mL (for cultures in 1mL) and 1x106 cells/mL (for cultures in 30 and 300mL) the day of transfection.
